Shelly Wave 1PM Mini
£29.99
1 in stock
Overview

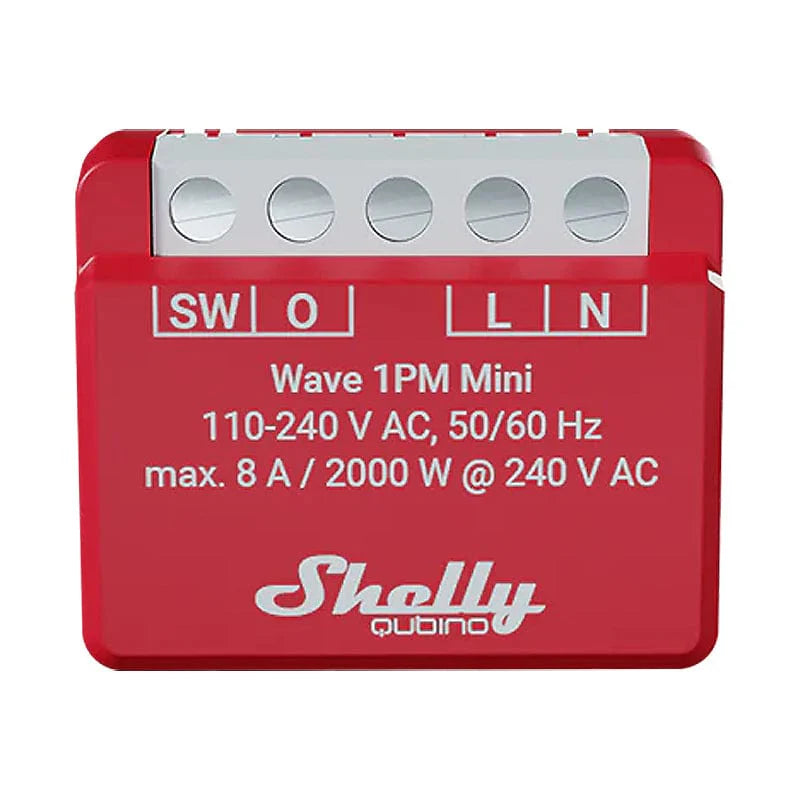

The Shelly Wave 1PM Mini is a compact Z-Wave smart relay with integrated power monitoring, designed for controlling and measuring AC loads up to 8 A (2000 W at 240 V). Its mini form factor makes it ideal for installations inside tight wall boxes or crowded electrical enclosures.
Built on the Z-Wave 800 Series chipset, the module provides improved wireless range, reliability, and security while enabling both remote switching and real-time energy monitoring for lighting circuits and small appliances.
Key features
- Single-channel relay with integrated power monitoring
- Switches AC loads up to 8 A (2000 W at 240 V)

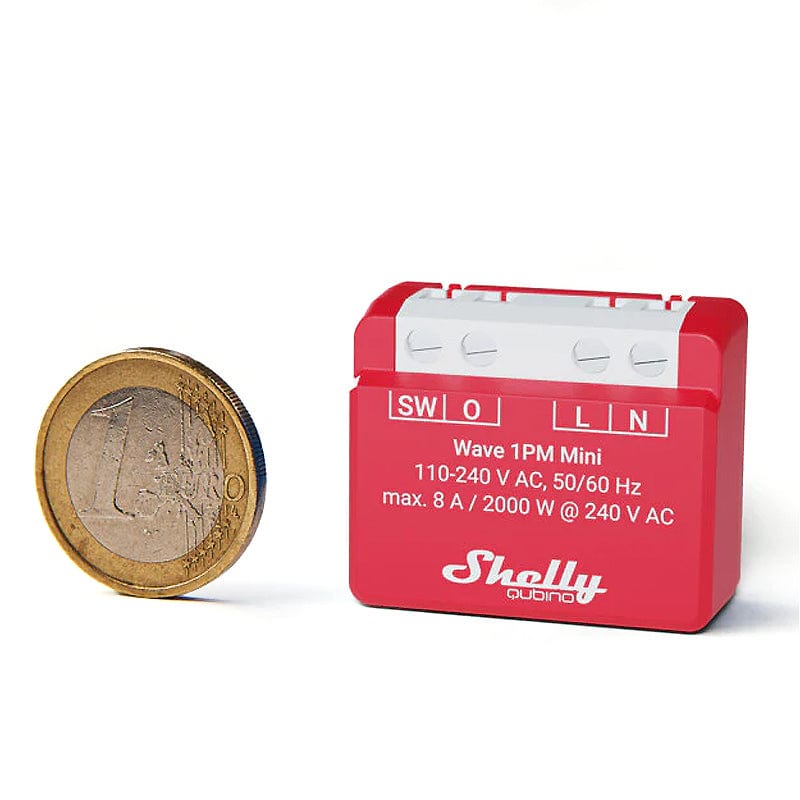

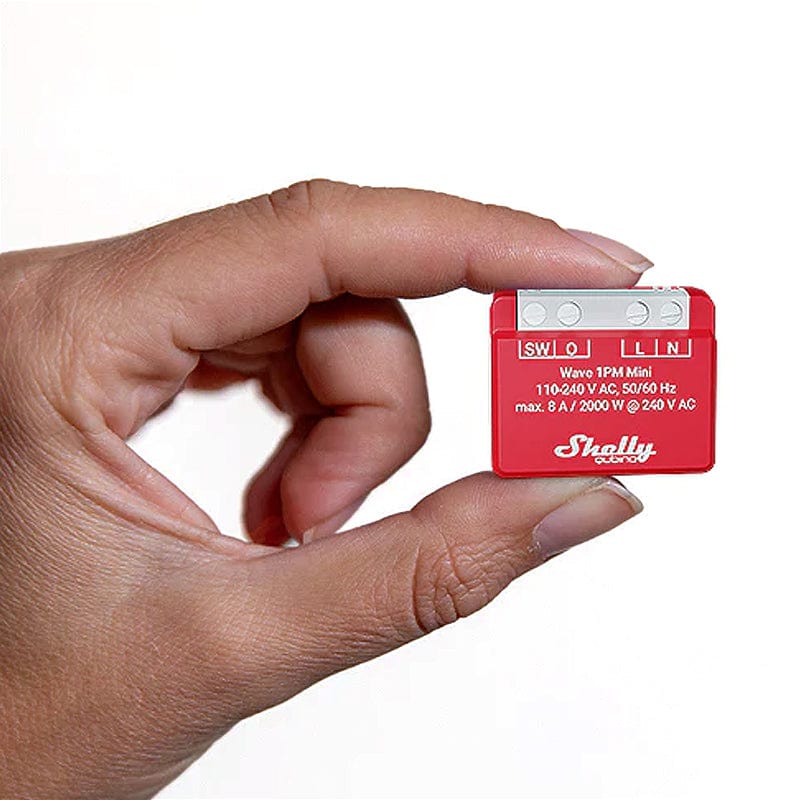

- Compact mini form factor for tight wall boxes and enclosures
- Z-Wave 800 Series chipset for improved range and reliability
- SmartStart support for fast and secure Z-Wave inclusion
- Supports Z-Wave associations for direct device-to-device control
- Extremely low standby power consumption (< 0.3 W)
- OTA firmware updates via compatible Z-Wave hubs
- Security 2 (S2) authenticated encryption
Product information
Use cases
- Smart Lighting Control
- Install behind wall switches to enable remote control and automation of lighting circuits through your Z-Wave smart home system.
- Appliance Switching and Monitoring
- Control and monitor small appliances while tracking their energy usage through power monitoring.
- Compact In-Wall Automation
- Use the mini form factor to add smart switching and energy monitoring inside tight wall boxes or electrical enclosures.
Technical specifications
Electrical
Power Supply
110–240 V AC, 50/60 Hz
Maximum Switching Power
2000 W (AC)
Maximum Switching Current
8 A
Maximum Switching Voltage
240 V AC
Standby Power Consumption
< 0.3 W
Power Monitoring
Yes
Overheating Protection
Yes
Overload Protection
Yes
Z-Wave
Protocol
Z-Wave Plus
Frequency Band
868.4 MHz (UK/EU)
Chipset
Z-Wave S800 (800 Series)
Security
S2 Authenticated
Repeater Function
Yes
Typical Indoor Range
Up to 40 m
Physical
Dimensions
29 × 35 × 16 mm
Weight
18 g
Mounting

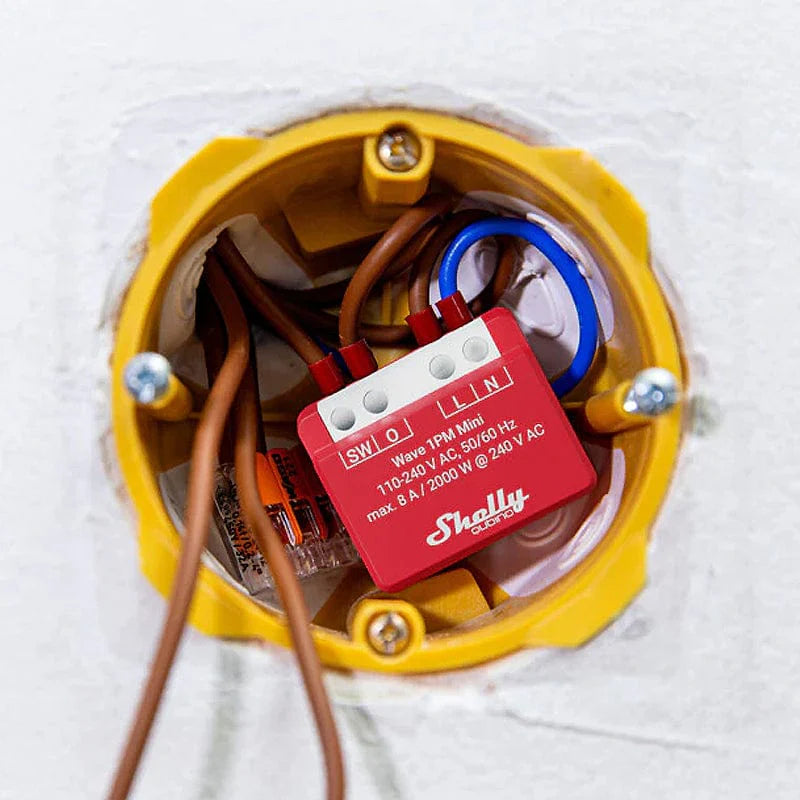

In-wall wall box installation
Terminal Torque
0.4 Nm
Conductor Size
0.5–1.5 mm²
Material
Plastic
Colour
Red
Environmental
Operating Temperature
-20 °C to 40 °C
Humidity
30–70% RH
Maximum Altitude
2000 m
What’s included

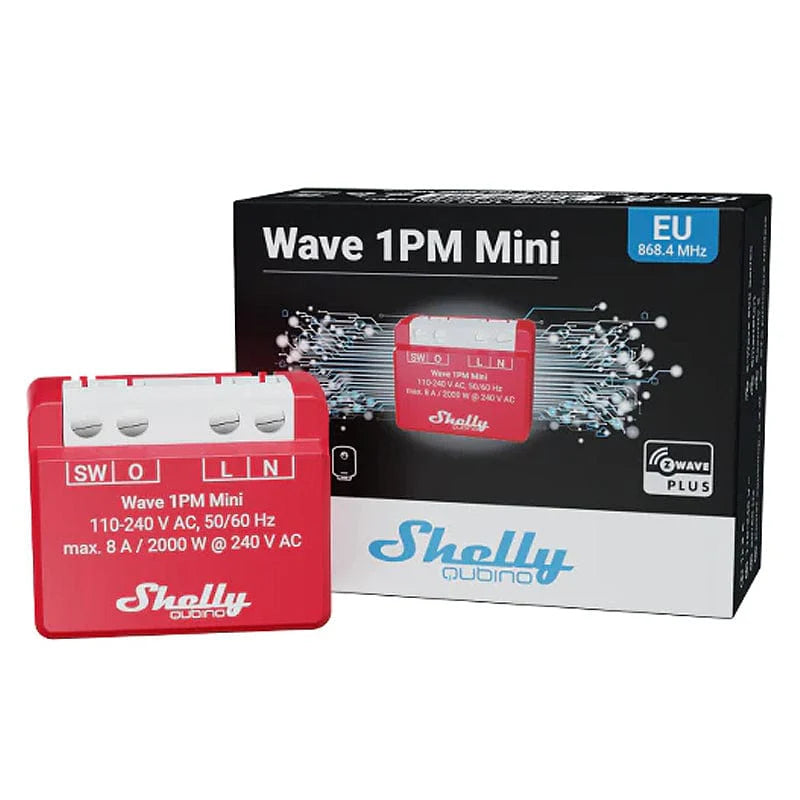

- Shelly Wave 1PM Mini
- Quick start guide
